Commodore 64 Files on macOS

C=64 Boot

Last year, I managed to acquire a C=64 Maxi. It’s a faithful replication of the original Commodore 64 based on an ARM SBC, similar to a Raspberry Pi, running a minimal Linux kernel and VICE. As I’m also a Mac user, I had to figure out how to access and transfer files, and develop software for the C=64 on the Mac. This should be mostly the same if using The C=64, or emulation of the C=64 on the Mac itself.

NOTE: While the installation process is different, using the tools is the same under Linux as macOS.

Tools needed

You’ll need a few things:

  • The Xcode Command Line Tools
  • Brew
  • c1541 which is part of the Vice package to access disk images
  • cc65 to compile C programs
  • detox64 to de-token BASIC programs
  • cbmbasic to run BASIC programs locally

Xcode cmd tools and brew installs are documented on their respective pages.

c1541 as mentioned, is part of the Vice package. Vice, cc65, and cbmbasic can be installed with Brew.

$ brew install vice cc65 cbmbasic

For Detox, you’ll need to download the source and compile it

$ git clone
$ cd detox64
$ make
make -C src
gcc -o detox64 detox64.o
$ cp src/detox64 ~/bin

Transferring files to and from .d64 or .d81 files

The c1541 will let you copy files to and from disk images.

Run it giving it the disk image name

$ c1541 BASIC-1.d81
c1541 (VICE 3.6.1)
Copyright 1995-2022 The VICE Development Team.
C1541 is free software, covered by the GNU General Public License, and you are
welcome to change it and/or distribute copies of it under certain conditions.

Use the list command to get a disk list

c1541 #8> list
0 "disk            "    3d
1     "10print"           prg
1     "count mil"         prg
1     "shooting"          prg
1     "babycry"           prg
1     "dolcry"            prg
1     "simpson x sq"      prg
1     "prime1"            prg
2     "prime1a"           prg
3151 blocks free.

Use the read command to copy files out of an image.

read “file” /path/to/file

c1541 #8> read prime1 /tmp/prime1
reading file `prime1' from unit 8

Use the write command to put files onto images

c1541 #8> write SPIRICOM.PRG "SPIRICOM"
writing file `????????.???' as `????????' to unit 8
c1541 #8> list
0 "disk            "    3d
1     "10print"           prg
1     "count mil"         prg
1     "shooting"          prg
1     "babycry"           prg
1     "dolcry"            prg
1     "simpson x sq"      prg
1     "prime1"            prg
2     "prime1a"           prg
39    "SPIRICOM"          prg
3112 blocks free.

When done, use the quit command to exit.

There is are many other commands that it has such as a format and GEOS specific commands.

De-tokenizing and running BASIC programs

Since Commodore 64 programs are stored tokenized on disks, you’ll need to use detox64 to convert them to ASCII text.

To do so, just run detox > file.bas

$ detox64 /tmp/hello
20 GOTO 10

Or to save to a .bas file

$ detox64 /tmp/hello > /tmp/hello.bas

To run the basic program, use cbmbasic. Just know that it can’t use PETSCII characters and Pokes and Peeks don’t really work either.

$ cbmbasic /tmp/hello.bas | head -5

Compiling C programs

Use cl65 ( part of the cc65 package ) to compile C language programs.

$ cl65 -t c64 -o hello.prg hello.c
$ file hello.prg
hello.prg: CBM BASIC, SYS 2061

And then you can use c1541 to copy it to a disk image as described above or use vice to run it

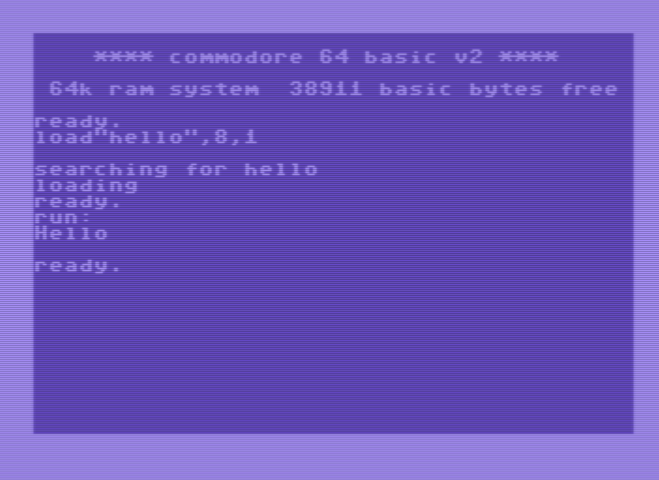

$ x64sc hello.prg

C=64 Boot

To get the files to The C=64, all you need to do is copy the disk image to an USB drive and plug it into The C=64, then access it as you would any disk image.

In a future post, I’ll go over using a Greaseweazle to access files on physical disks.
